MDS co-plot of a DEA problem

Source: R/plot-io-mds.R
plot_io_mds.Rd

Places the DMUs in two dimensions by multidimensional scaling (Adler and Raveh, 2008) and colours them by a chosen quantity: a DEA efficiency score, or one of the input/output variables (or their output-to-input ratios).

Usage

plot_io_mds(
  x,
  transform = c("none", "ratio"),
  dist_method = c("euclidean", "manhattan", "maximum", "canberra", "minkowski"),
  mds_type = c("ratio", "interval", "ordinal", "mspline"),
  encode = "crs",
  point_size = 2,
  transparency = 0.7,
  fade = TRUE,
  labels = "none",
  max.overlaps.value = 10,
  subtitle = NULL,
  title = NULL,
  interactive = FALSE,
  ...
)

Arguments

x

A dea_data object, or a data frame coerced by as_dea_data.

transform

What to compute distances on: "none" (the original inputs and outputs) or "ratio" (all output/input ratios).

dist_method

Distance measure, passed to dist.

mds_type

Scaling level, passed to smacofSym.

encode

What to colour by: an efficiency model ("crs", "vrs", "drs", "irs", "fdh", "add") or the name of one of the distance-space columns.

point_size

Point size (default 2).

transparency

Point alpha in [0, 1] (default 0.7).

fade

Controls the single-DMU focus view. When one DMU is given to labels, all other marks (and, for the network plots, everything outside that DMU's sub-network; for the panel biplot, the other trajectories) are faded so the chosen DMU stands out. TRUE (default) uses a sensible fade level; FALSE disables it; a single number in [0, 1] sets the alpha of the faded marks directly, where larger values fade them less (e.g. 0.4 leaves them more visible).

labels

Which DMUs to label: "none" (default), "all" (label every DMU; ggrepel with max.overlaps = Inf), "max.overlaps" (ggrepel using max.overlaps.value), or the name/id of a single DMU to highlight just that one. Use "id" to print each DMU's row number inside its own marker.

max.overlaps.value

Passed to ggrepel when labels = "max.overlaps" (default 10); larger values keep more crowded labels.

subtitle

Optional subtitle shown beneath the title.

title

Optional plot title. If NULL (default) one is generated.

interactive

Logical; static ggplot2 (default) or interactive plotly.

...

Additional arguments passed to geom_point.

Value

A ggplot2 object, or a plotly object when interactive = TRUE.

References

Adler, N., & Raveh, A. (2008). Presenting DEA graphically. Omega, 36(5), 715–729.

de Leeuw, J., & Mair, P. (2009). Multidimensional scaling using majorization: SMACOF in R. Journal of Statistical Software, 31(3), 1–30. doi:10.18637/jss.v031.i03

See also

compute_efficiency, smacofSym

Examples

df <- data.frame(
  dmu  = paste0("D", 1:8),
  i_x1 = c(4, 7, 8, 4, 2, 5, 6, 3),
  i_x2 = c(3, 3, 1, 2, 4, 2, 5, 1),
  o_y  = c(5, 8, 6, 7, 3, 9, 4, 6)
)

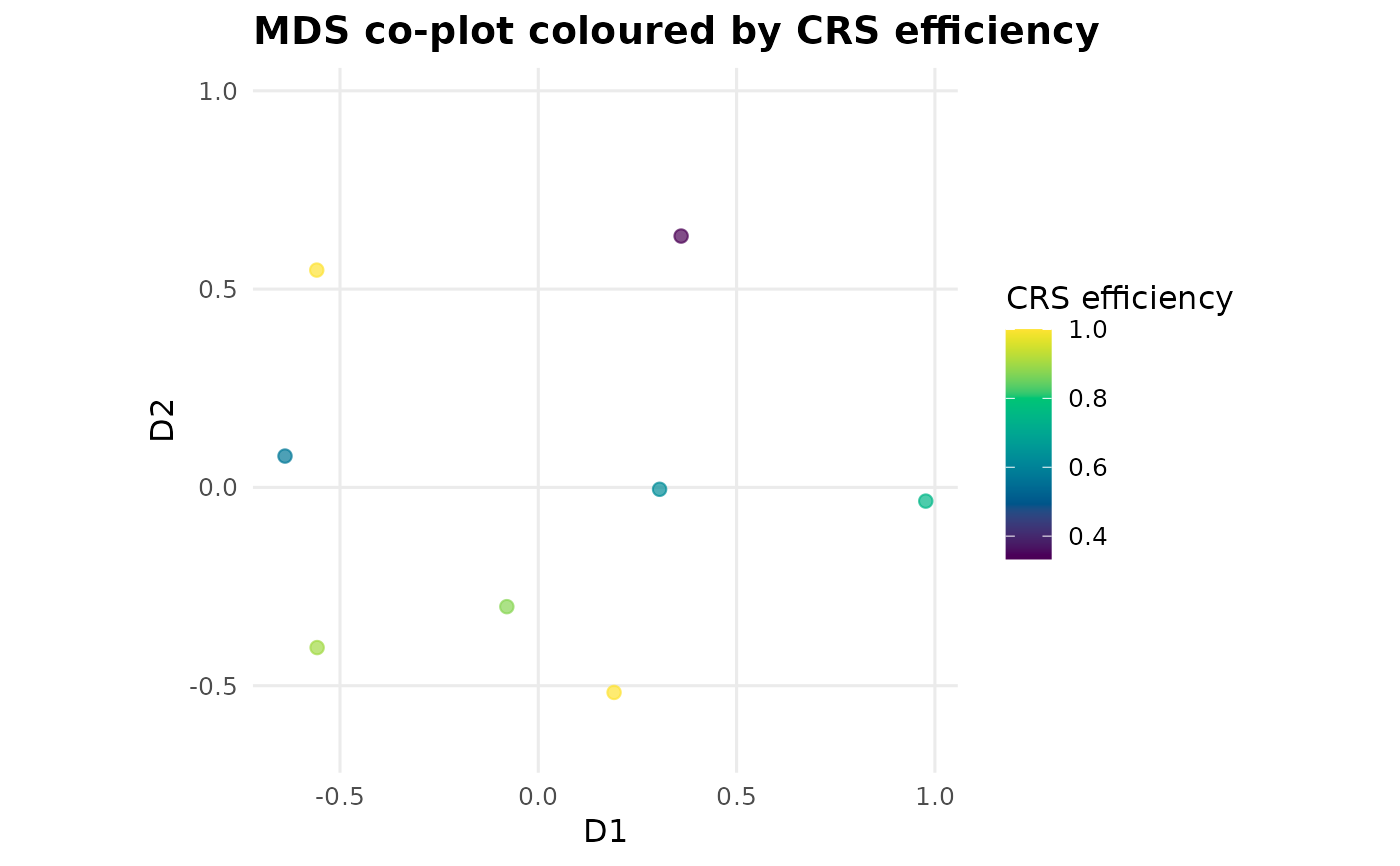

plot_io_mds(df, encode = "crs")
